Wall

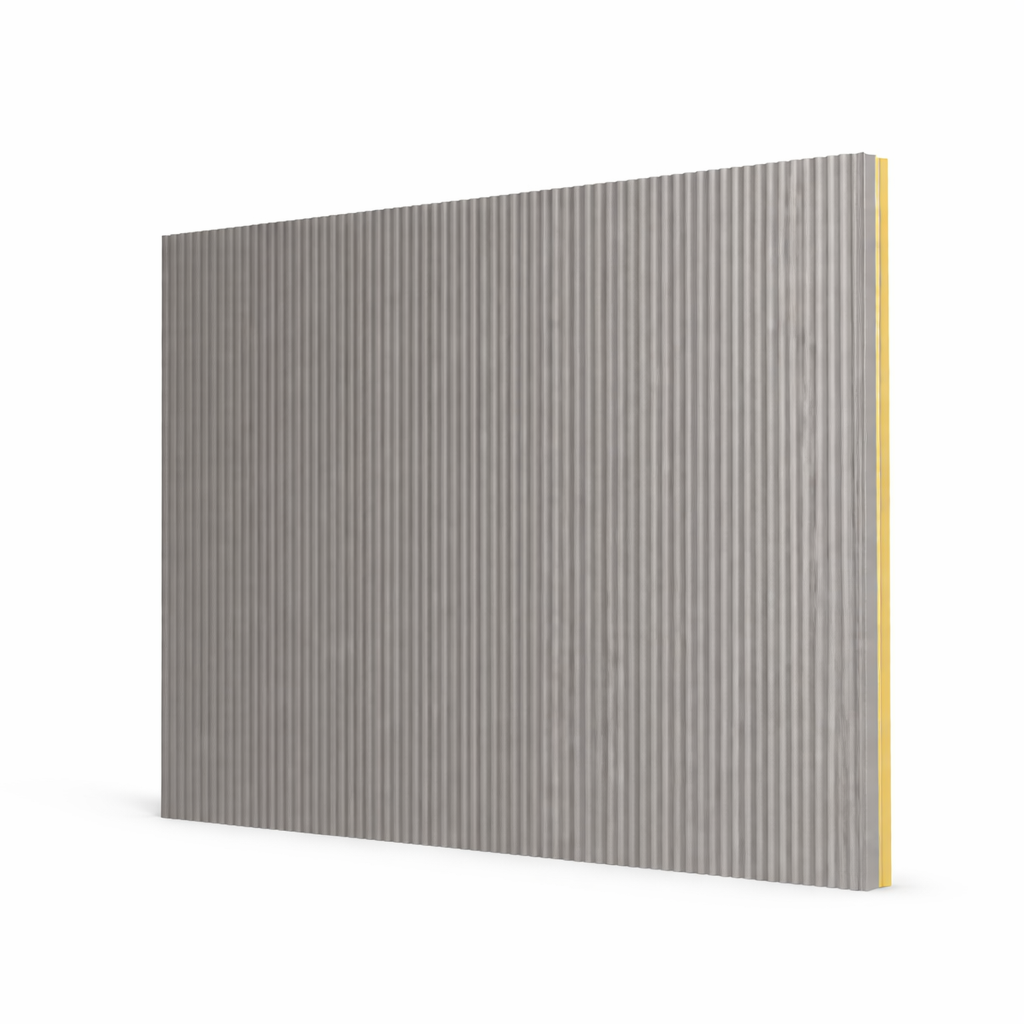

DC600 Secret-Fix Wall Panel

The DC600 is a premium insulated wall panel featuring a concealed fixing system for a seamless, architectural finish. Engineered with a CFC/HCFC-free PIR foam core, it provides superior thermal performance and is suitable for both horizontal and vertical orientations. Available in multiple profiles including Liner, Microrib, and Plank, it is the ideal choice for creating modern, clean facades with rapid installation and low maintenance.

Request a QuoteCall Sales
DC600 Secret-Fix Wall Panel

Key Advantages

Concealed fixings for a clean, architectural finish
Low self-weight and lightweight substructure
High thermal performance (PIR foam core)
Quick and efficient installation
Mountable both horizontally & vertically
Durable, low maintenance, and suitable for all environments

Technical Specifications

Standard Length
From 2500 mm to 15000 mm
Effective Width
1000 mm
Type of Metal
Steel S280 GD
Outer Plate
Lightly profiled steel (Linear) (0.60mm standard)
Coatings
Essential (25 µ), Ultra 60, Ultra 75, HPS 200 Ultra®
Inner Plate
Lightly profiled steel (Linear) (0.40mm, RAL 9002 15µ)
Fastening
Hidden (requires pressure distribution plate)
Fire Class
B-s1,d0 (EN 13501-1:2019)
Fire Resistance
Up to EI30 (100mm and 150mm on request)

Performance Data

ThicknessWeightU-Value
60mm11.42 kg/m²0.38 W/m²K
80mm12.18 kg/m²0.27 W/m²K
100mm12.94 kg/m²0.21 W/m²K
120mm13.70 kg/m²0.18 W/m²K
150mm14.84 kg/m²0.15 W/m²K

Real World Applications

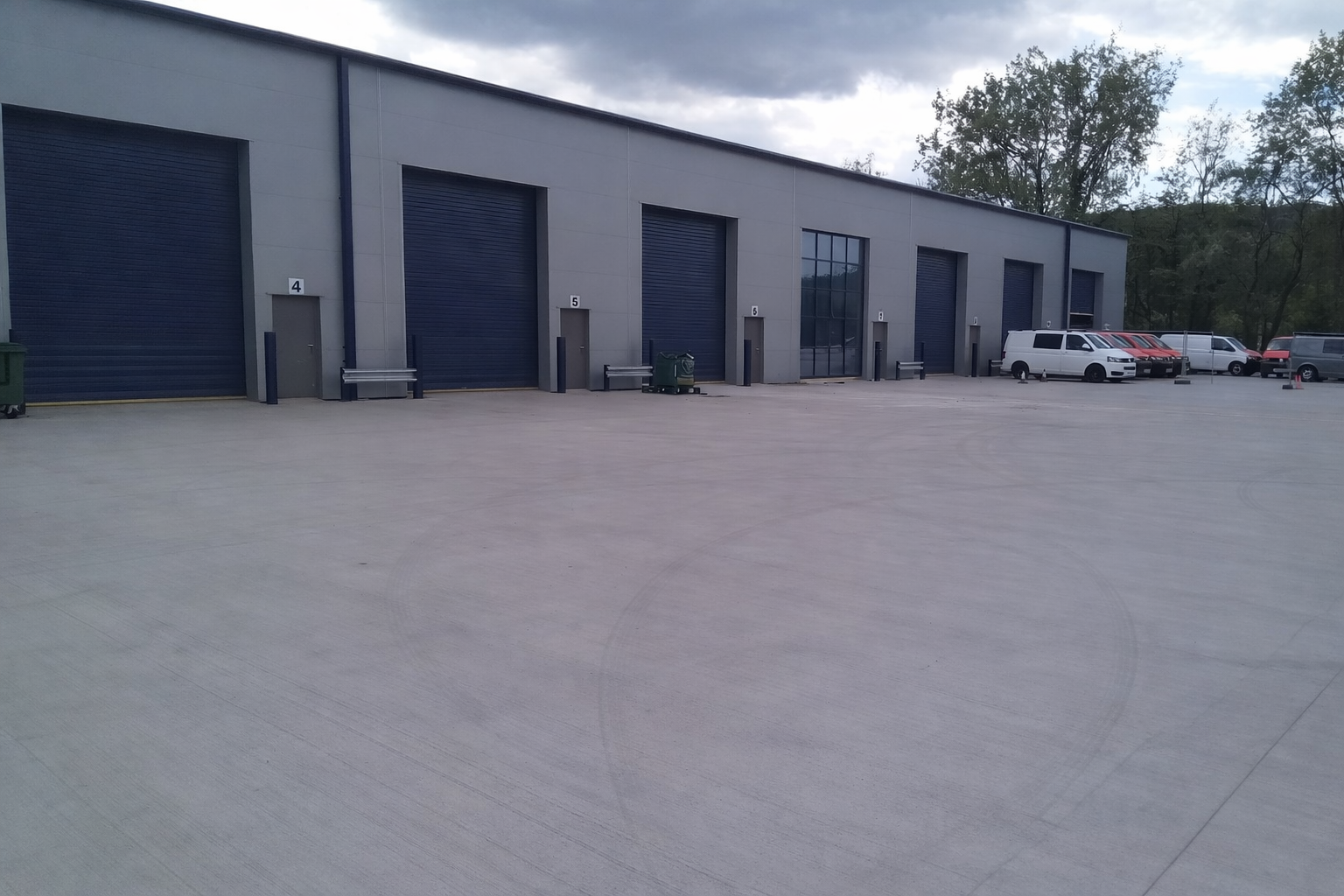

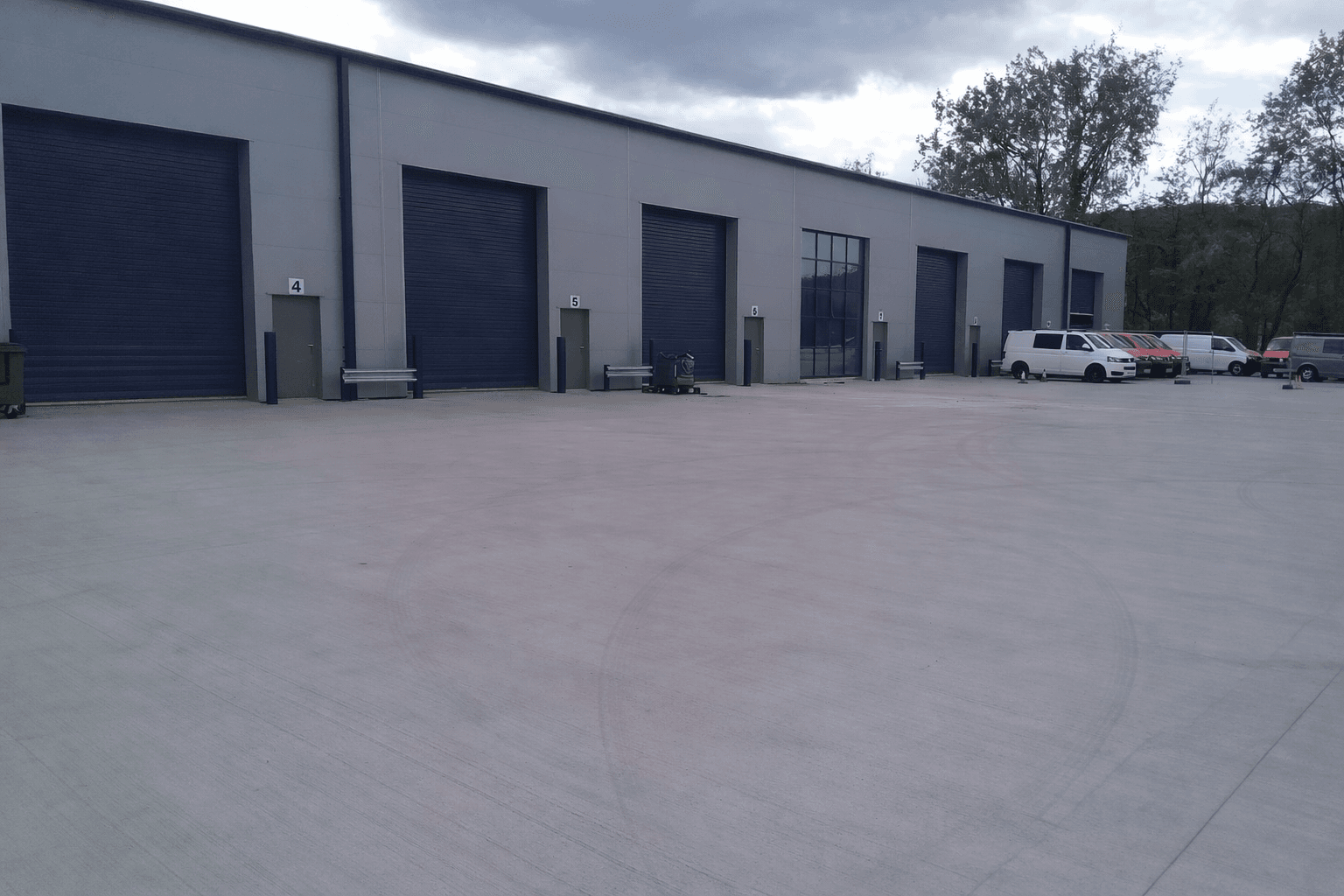

DC600 Secret-Fix Wall Panel application showcase 1

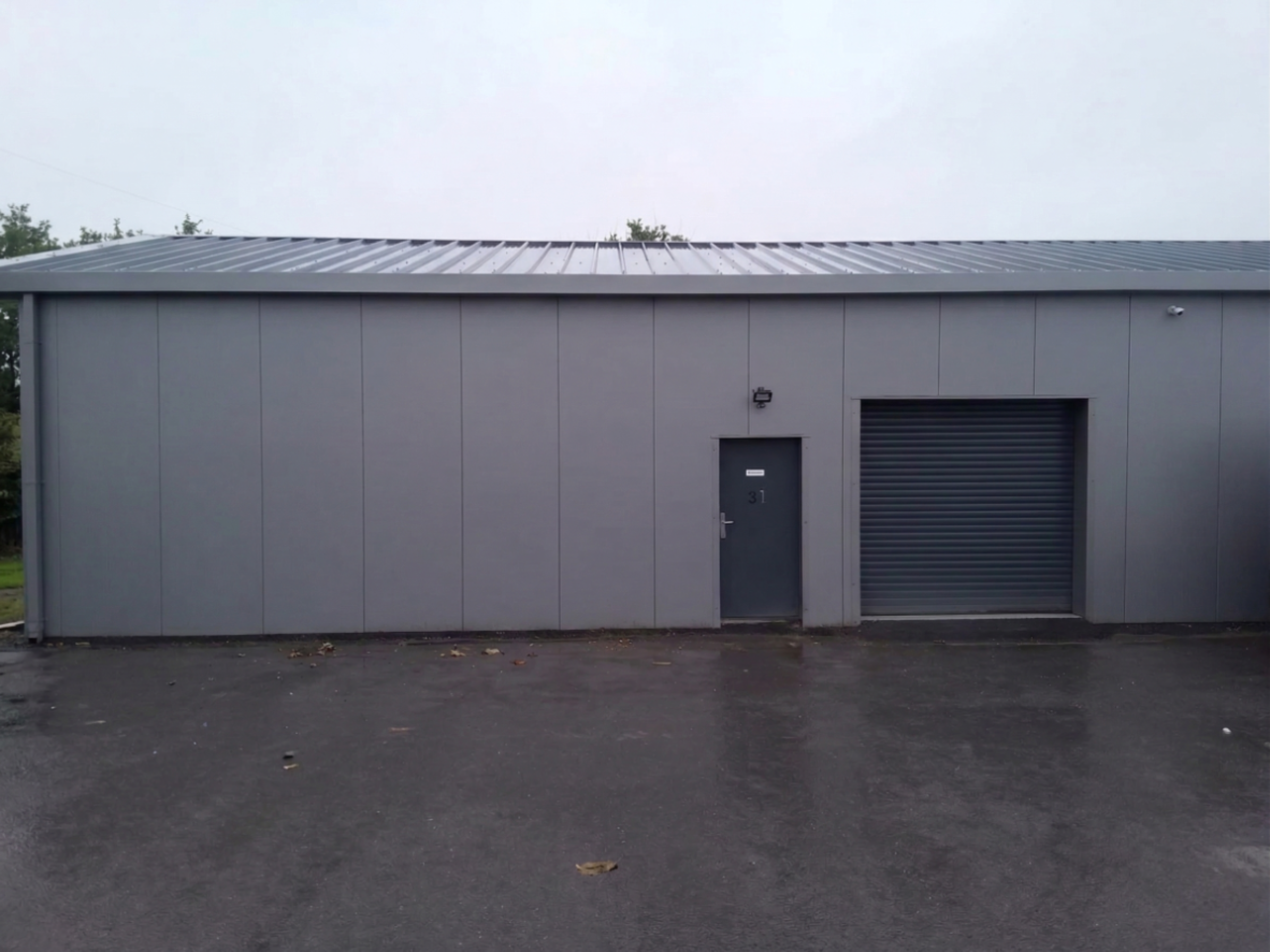

DC600 Secret-Fix Wall Panel application showcase 2

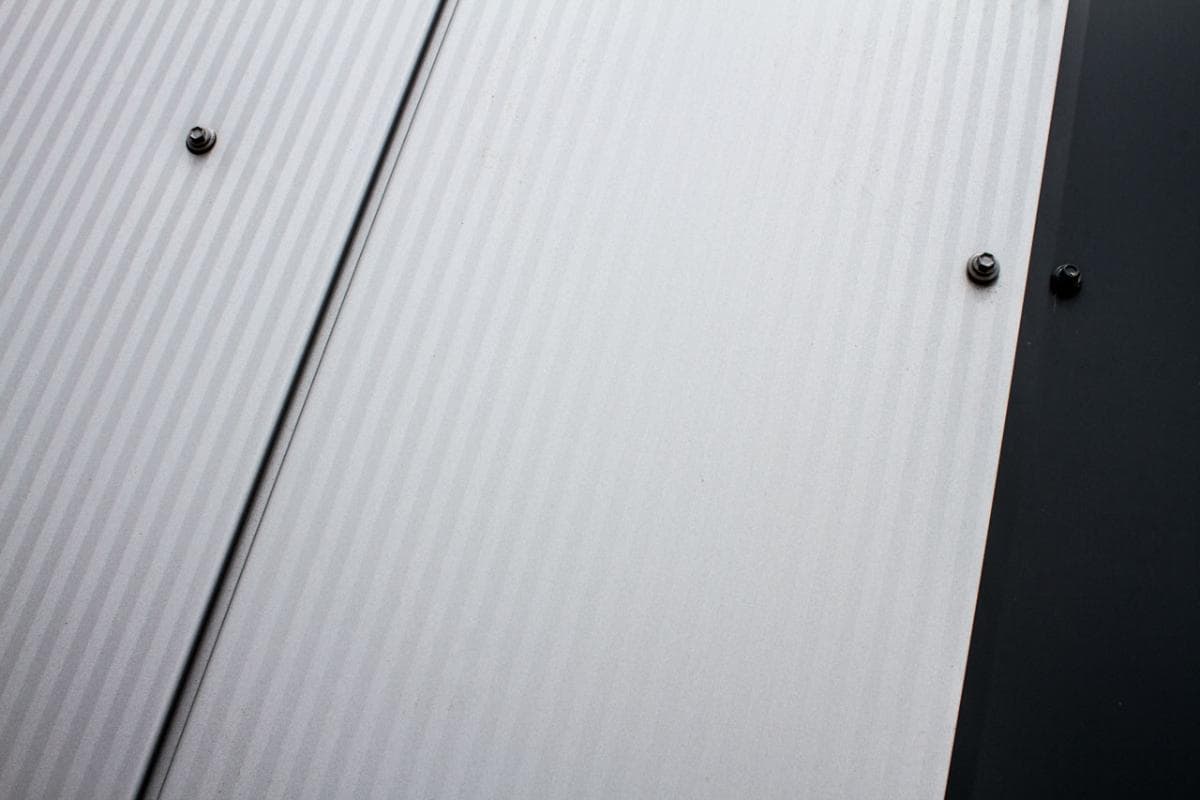

DC600 Secret-Fix Wall Panel application showcase 3
