Wall

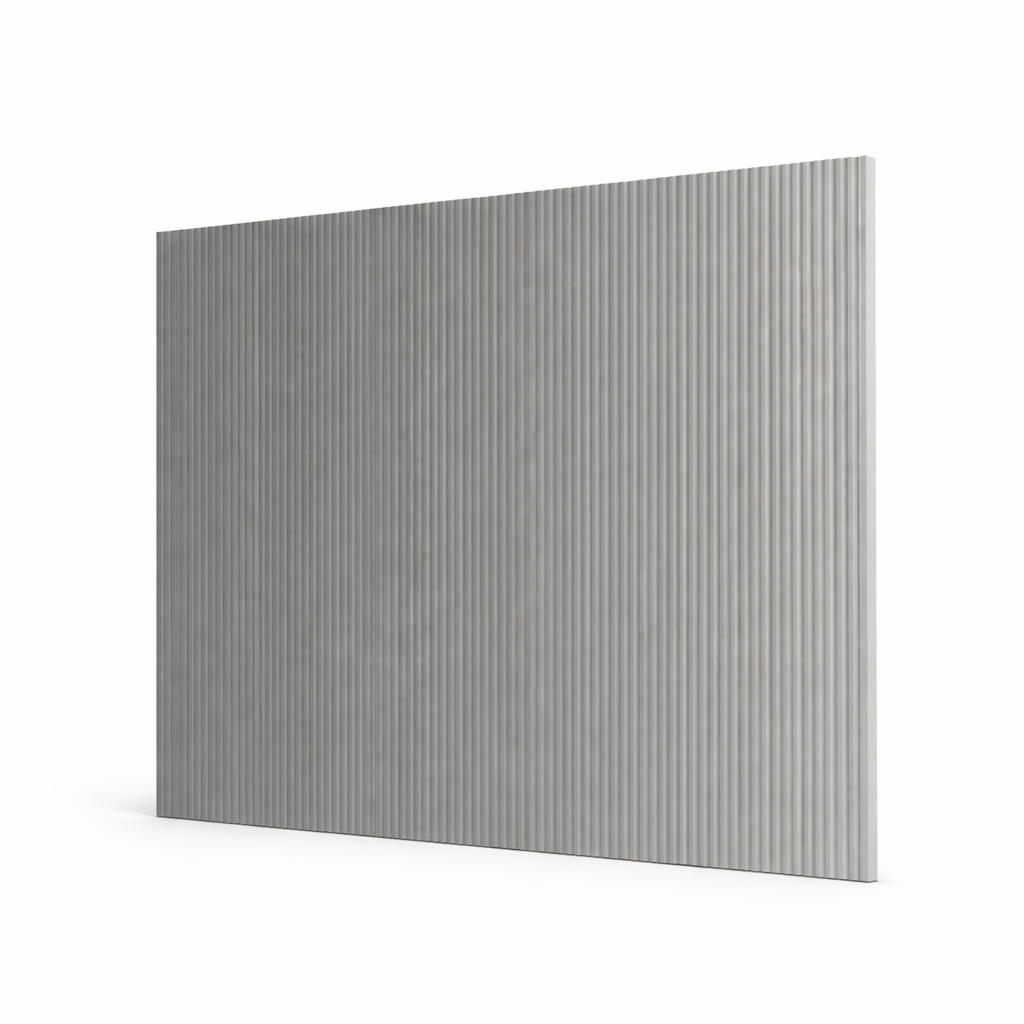

DC500 Insulated Wall Panel
The DC500 is a versatile, high-performance insulated wall panel designed for both vertical and horizontal installation. With visible fixings and a CFC/HCFC-free PIR foam core, it delivers exceptional thermal insulation and fire resistance. Available in multiple profiles (Liner, Microrib, Smooth) to meet diverse architectural requirements, it’s the ideal lightweight solution for agricultural, industrial, and cold storage facilities.
Key Advantages
Low self-weight with lightweight substructure
High thermal performance (PIR foam core)
Quick and flexible installation (Vertical or Horizontal)
Available in Liner, Microrib, and Smooth profiles
Durable and low maintenance
Suitable for indoor, outdoor, and cold storage applications
Technical Specifications
Performance Data
| Thickness | Weight | U-Value |
|---|---|---|
| 40mm | 9.79 kg/m² | 0.53 W/m²K |
| 60mm | 10.55 kg/m² | 0.36 W/m²K |
| 80mm | 11.83 kg/m² | 0.27 W/m²K |
| 100mm | 12.62 kg/m² | 0.21 W/m²K |
| 120mm | 13.41 kg/m² | 0.18 W/m²K |
| 150mm | 14.61 kg/m² | 0.15 W/m²K |
| 170mm | 15.40 kg/m² | 0.13 W/m²K |
| 200mm | 16.59 kg/m² | 0.11 W/m²K |
| 220mm | 17.38 kg/m² | 0.10 W/m²K |

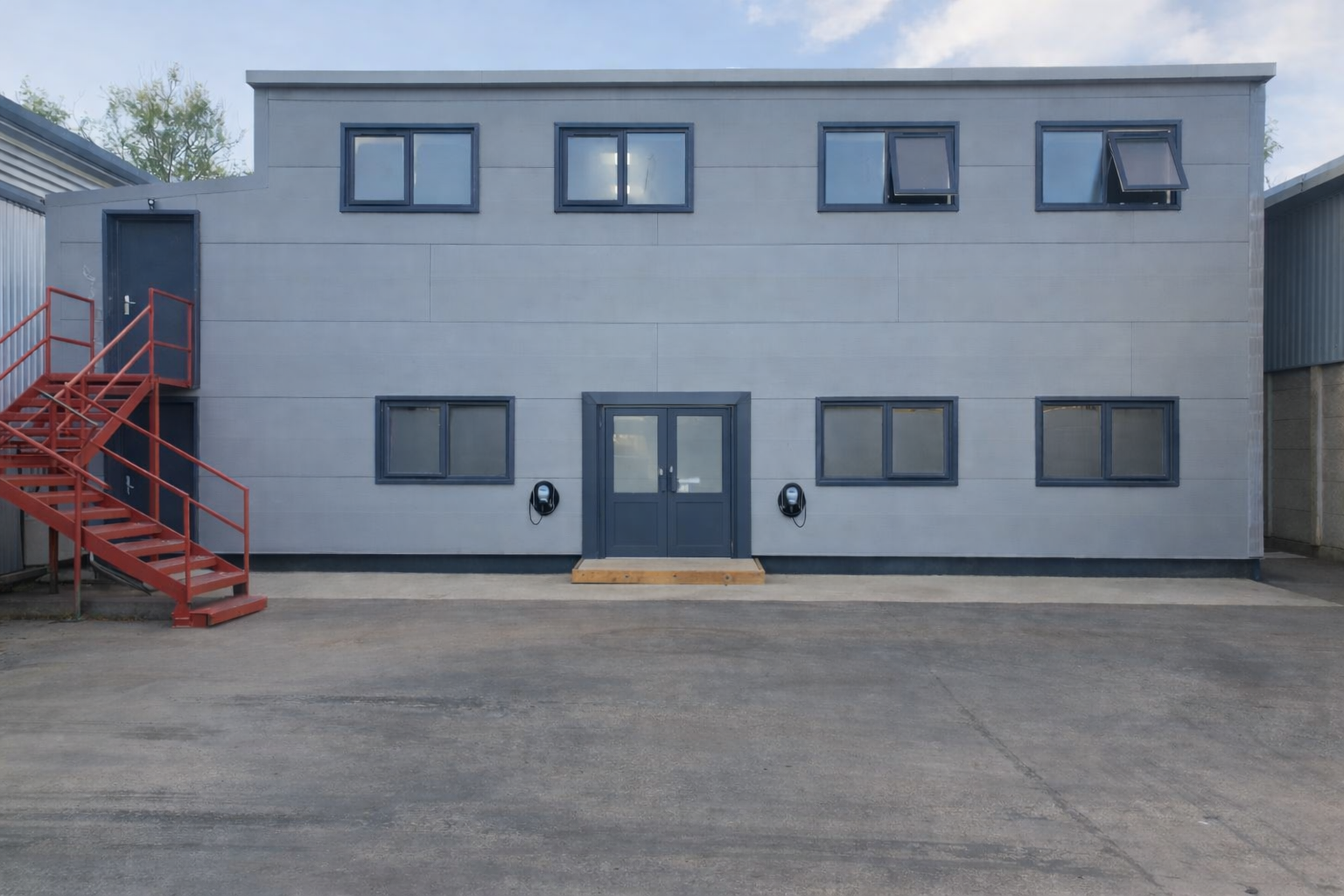

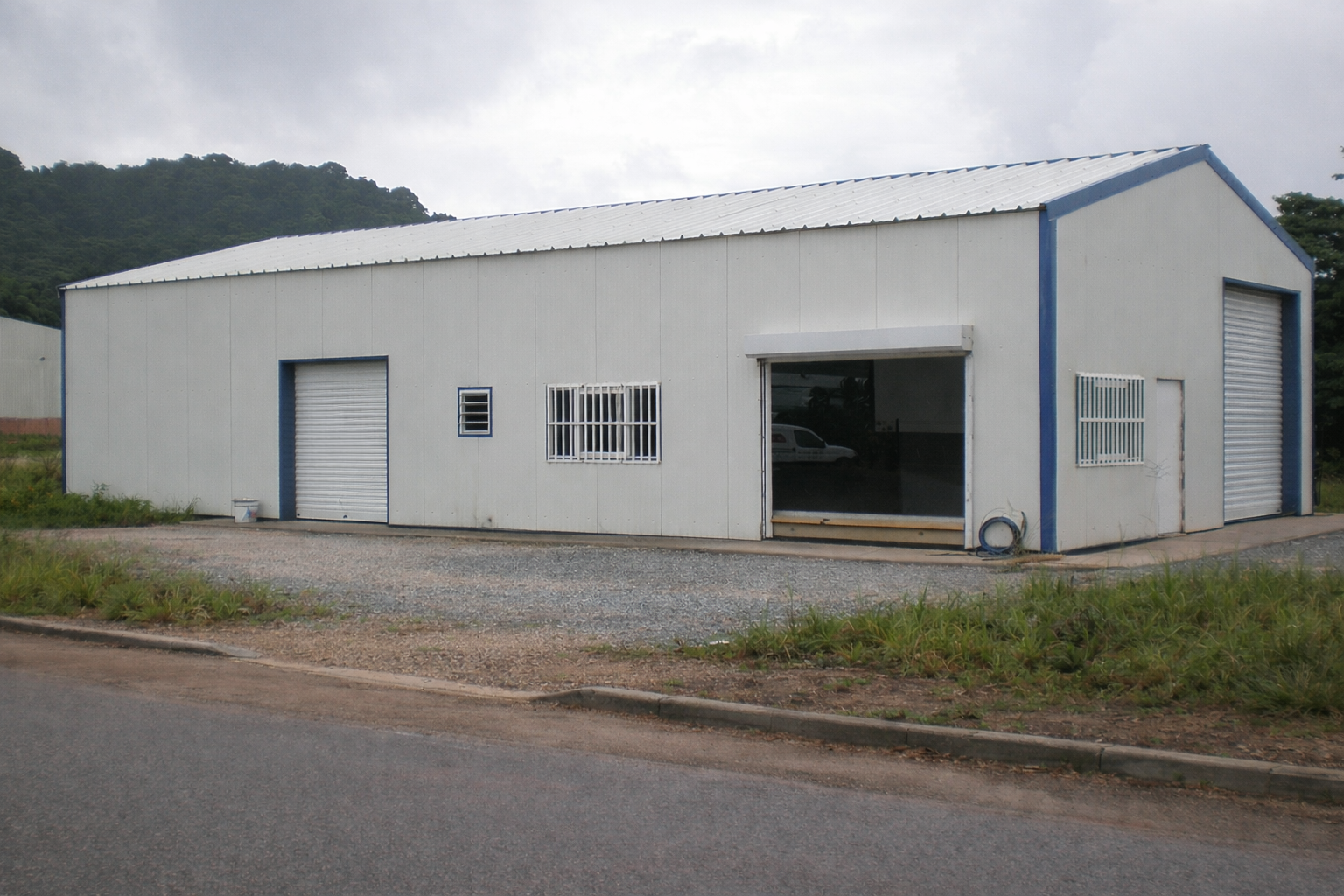

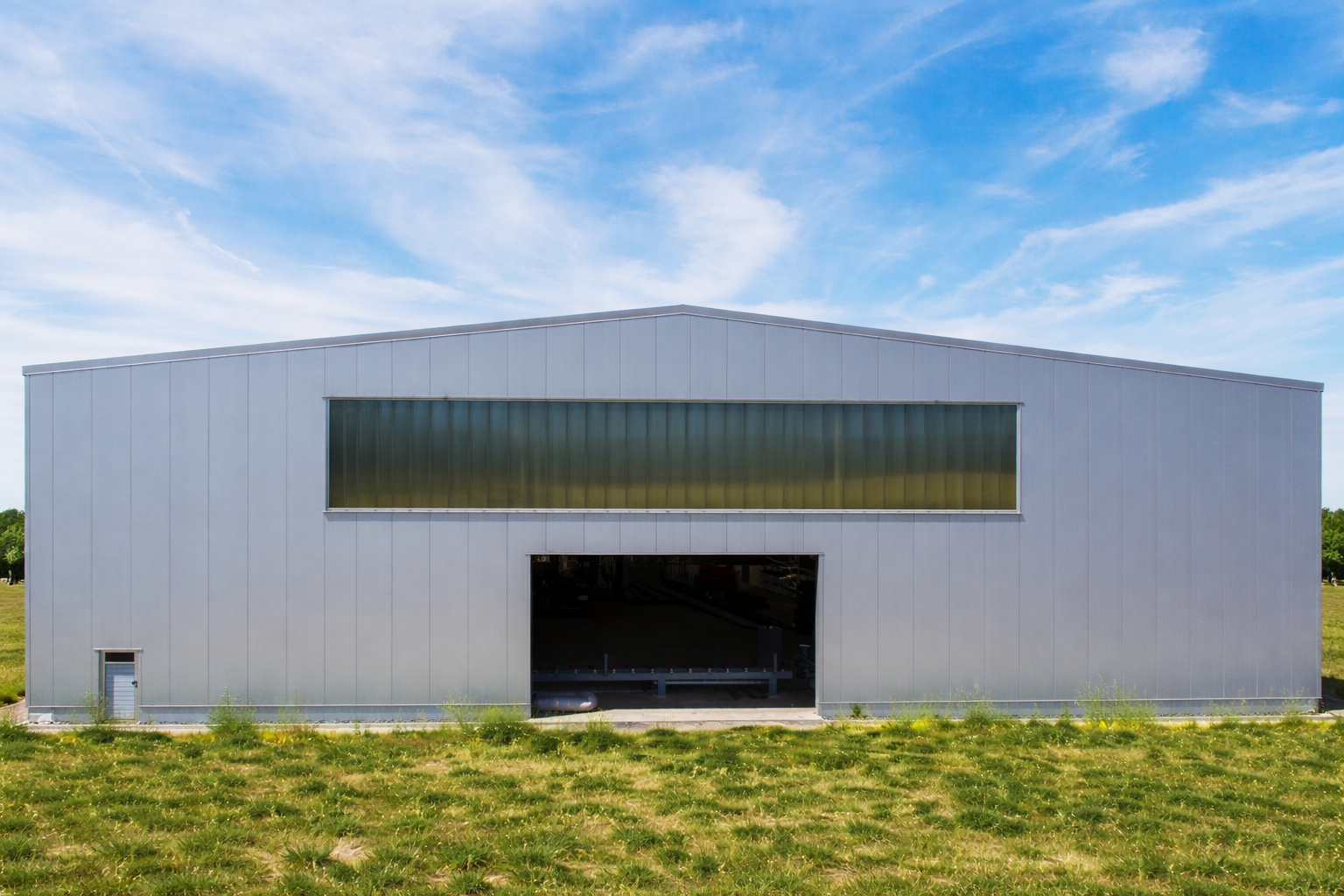

Real World Applications
