Pitched Roof

DC400 Tile Effect PIR Panel

The DC400 is an innovative sandwich roof tile panel that pairs a PIR insulation core with classic tile profiling. This durable alternative to traditional roof tiles is lighter, low-maintenance, and highly weather-resistant due to its premium steel construction. It provides a versatile and sustainable solution for any pitched roof, bridging traditional aesthetics with high-performance insulation.

Request a QuoteCall Sales

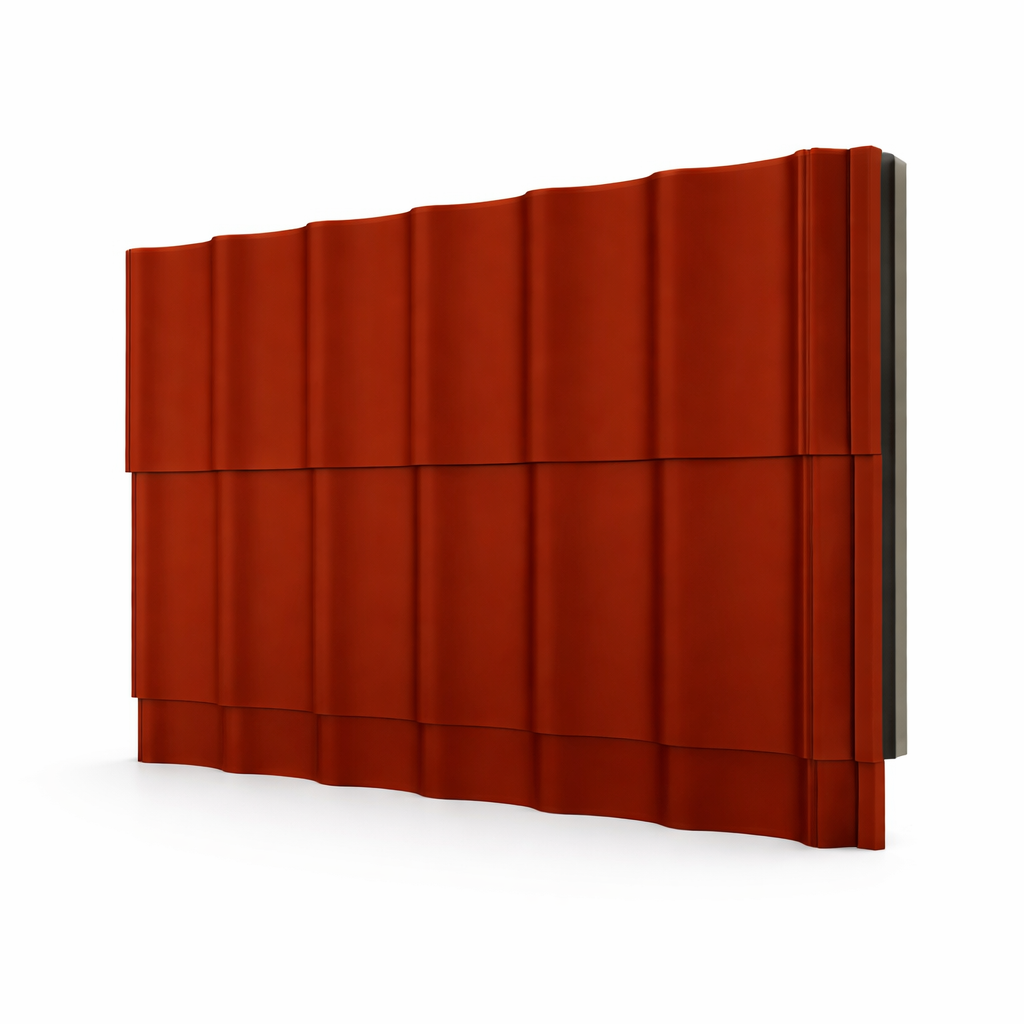

DC400 Tile Effect PIR Panel

Key Advantages

Stunning classic tile profile design
Significantly lighter than traditional roofing
High-performance PIR Insulation core
Quick and easy installation
Weather-resistant and highly durable
Low maintenance footprint

Technical Specifications

Standard Length
From 2100 mm to 10000 mm
Effective Width
1100 mm
Type of Metal
Steel S250 GD
Outer Plate
Profiled steel tile profile (0.50mm)
Coatings
Grandemat (40 µ)
Inner Plate
Lightly profiled steel (Linear) (0.40mm, RAL 9002 15µ)
Fire Class
B-s2,d0 (EN 13501-1:2019)
Minimum Roof Pitch
≥ 8°

Performance Data

ThicknessWeightU-Value
40mm9.52 kg/m²0.47 W/m²K
60mm10.42 kg/m²0.33 W/m²K
80mm11.32 kg/m²0.26 W/m²K
100mm12.22 kg/m²0.21 W/m²K
120mm13.12 kg/m²0.18 W/m²K

Real World Applications

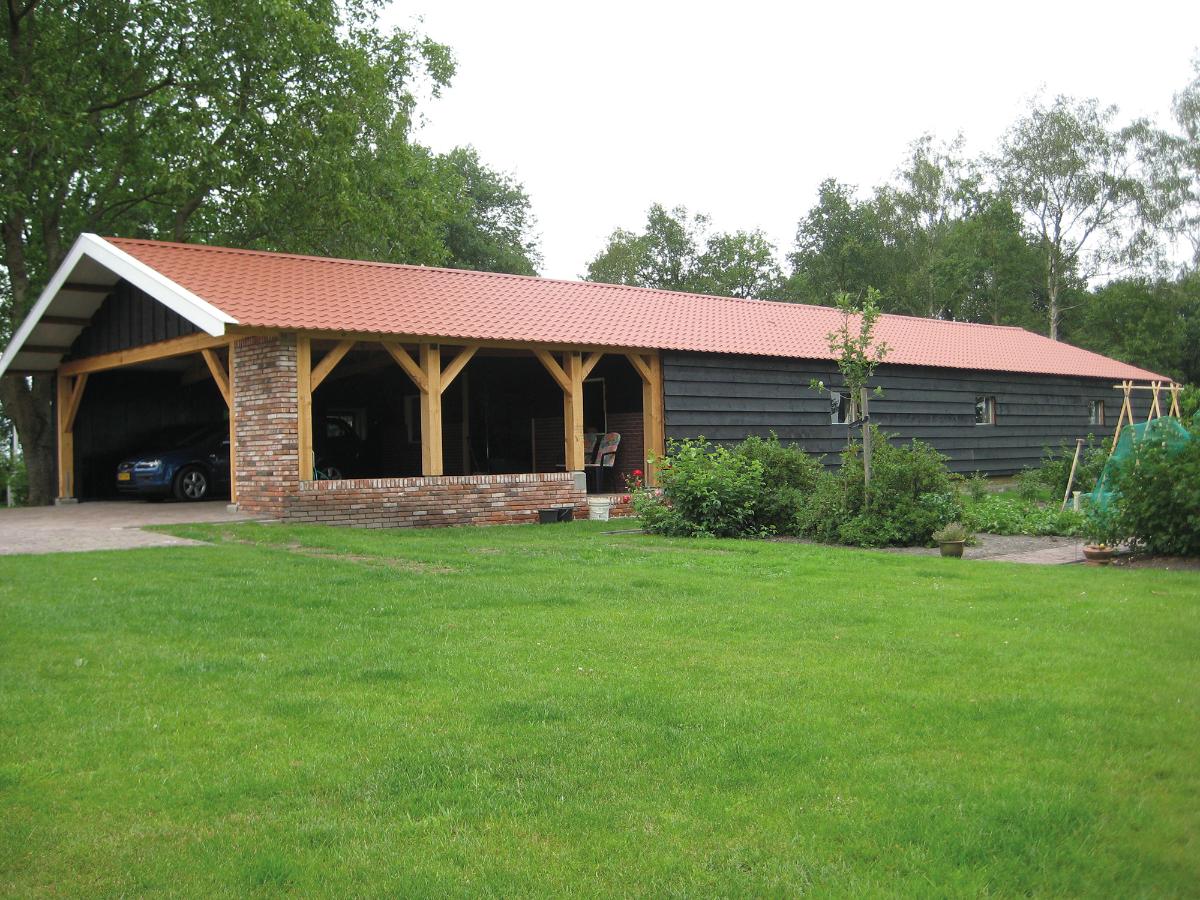

DC400 Tile Effect PIR Panel application showcase 1

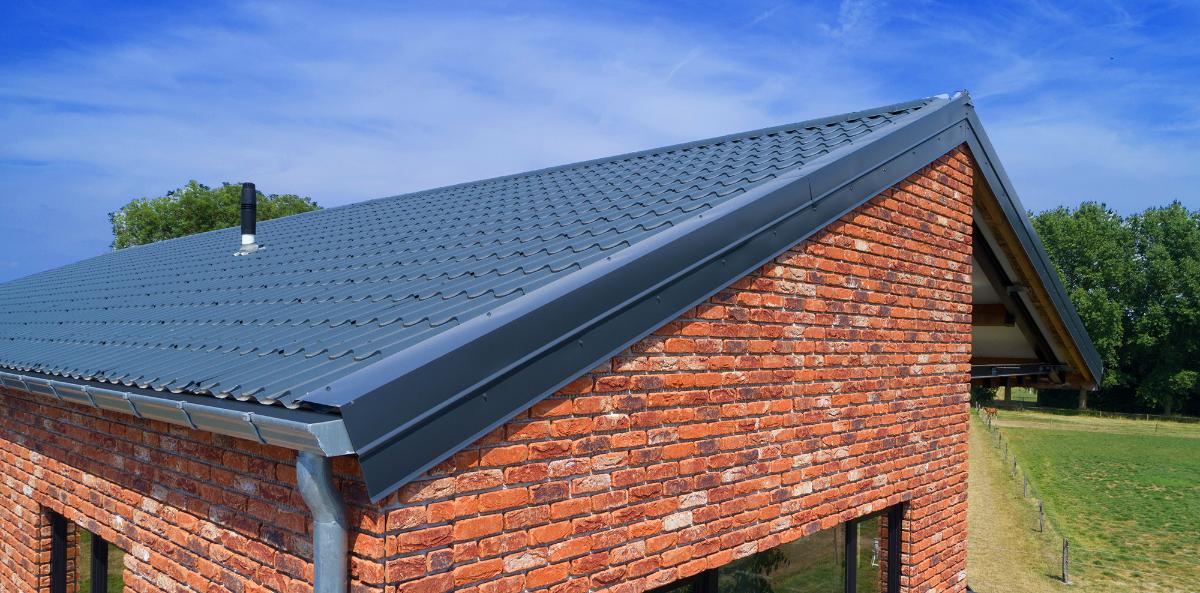

DC400 Tile Effect PIR Panel application showcase 2

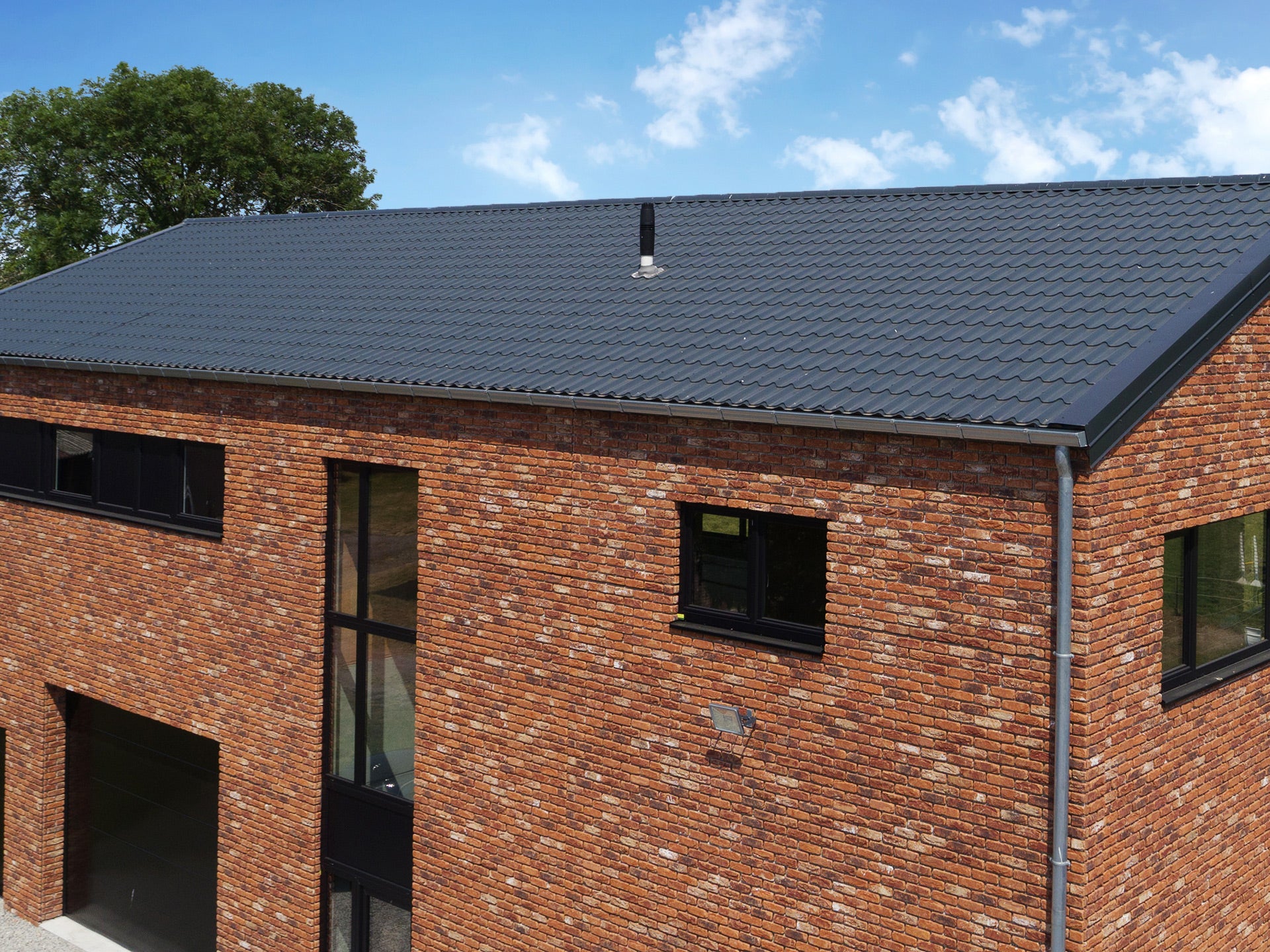

DC400 Tile Effect PIR Panel application showcase 3
