Roofing

DC200 Insulated Roof Panel

The DC200 is a lightweight insulated roof panel with a trapezoidal outer sheet and a high-quality PIR foam core completely free of CFC/HCFC. With thicknesses up to 150mm, this panel delivers stellar thermal insulation perfect for agricultural, industrial, tertiary, and residential projects. Versatile and future-proof, it can seamlessly integrate with solar solutions.

Request a QuoteCall Sales

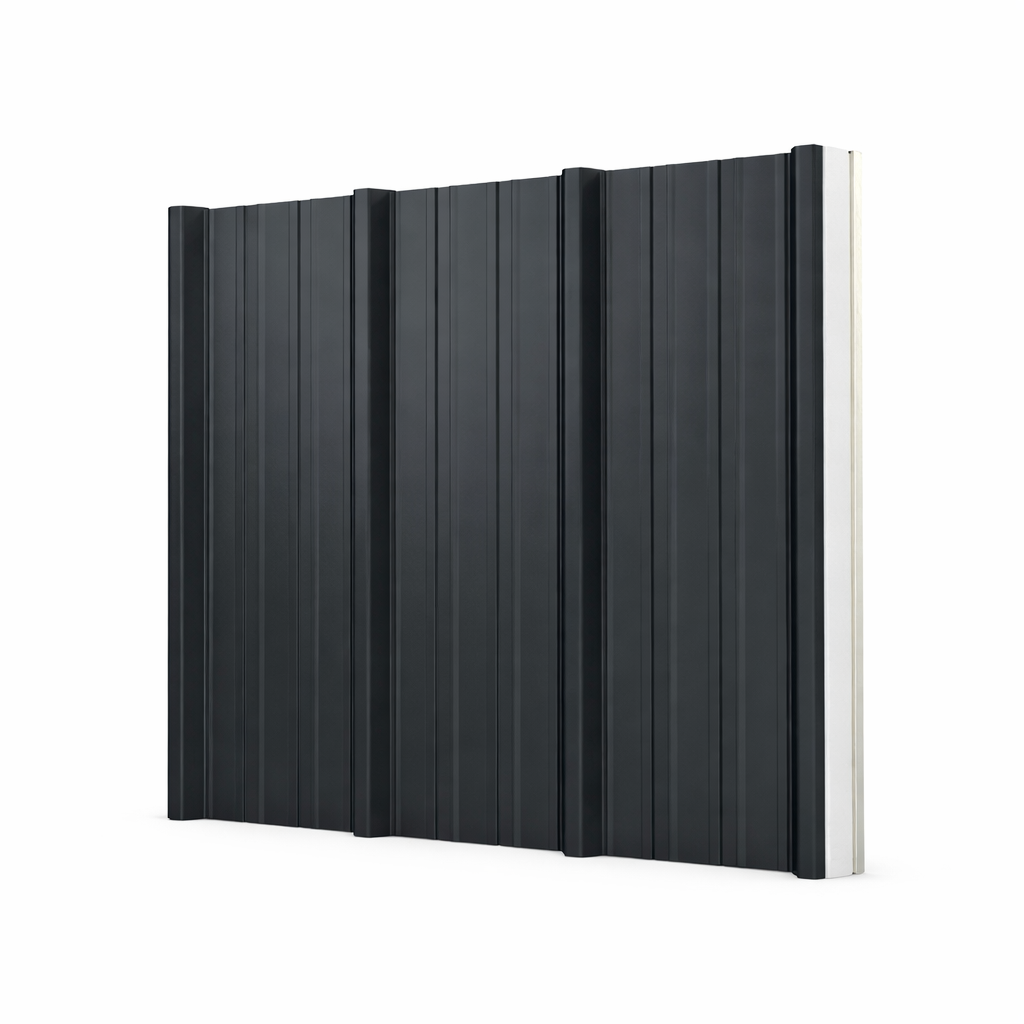

DC200 Insulated Roof Panel

Key Advantages

Excellent thermal insulation for versatile applications
Compatible with solar applications and solutions
Premium PIR Insulation core
Quick and easy installation
Strong and weather-resistant durable steel
Low maintenance lightweight design

Technical Specifications

Standard Length
From 2550 mm to 20500 mm
Effective Width
1000 mm
Type of Metal
Steel S280 GD
Outer Plate
Trapezoidal steel plate, type 45-333-1000 (0.60mm standard)
Coatings
Essential (25 µ), Ultra 60, Ultra 75, HPS 200 Ultra®
Inner Plate
Lightly profiled steel plate (0.40mm, RAL 9002 15µ)
Fire Class
40-150mm (B-s1,d0), 30mm (B-s2,d0)
Minimum Roof Pitch
≥ 5°

Performance Data

ThicknessWeightU-Value
30mm10.38 kg/m²0.67 W/m²K
40mm10.76 kg/m²0.50 W/m²K
60mm11.52 kg/m²0.35 W/m²K
80mm12.28 kg/m²0.27 W/m²K
100mm13.04 kg/m²0.21 W/m²K
120mm13.78 kg/m²0.18 W/m²K
130mm14.17 kg/m²0.16 W/m²K
150mm14.94 kg/m²0.14 W/m²K

Real World Applications

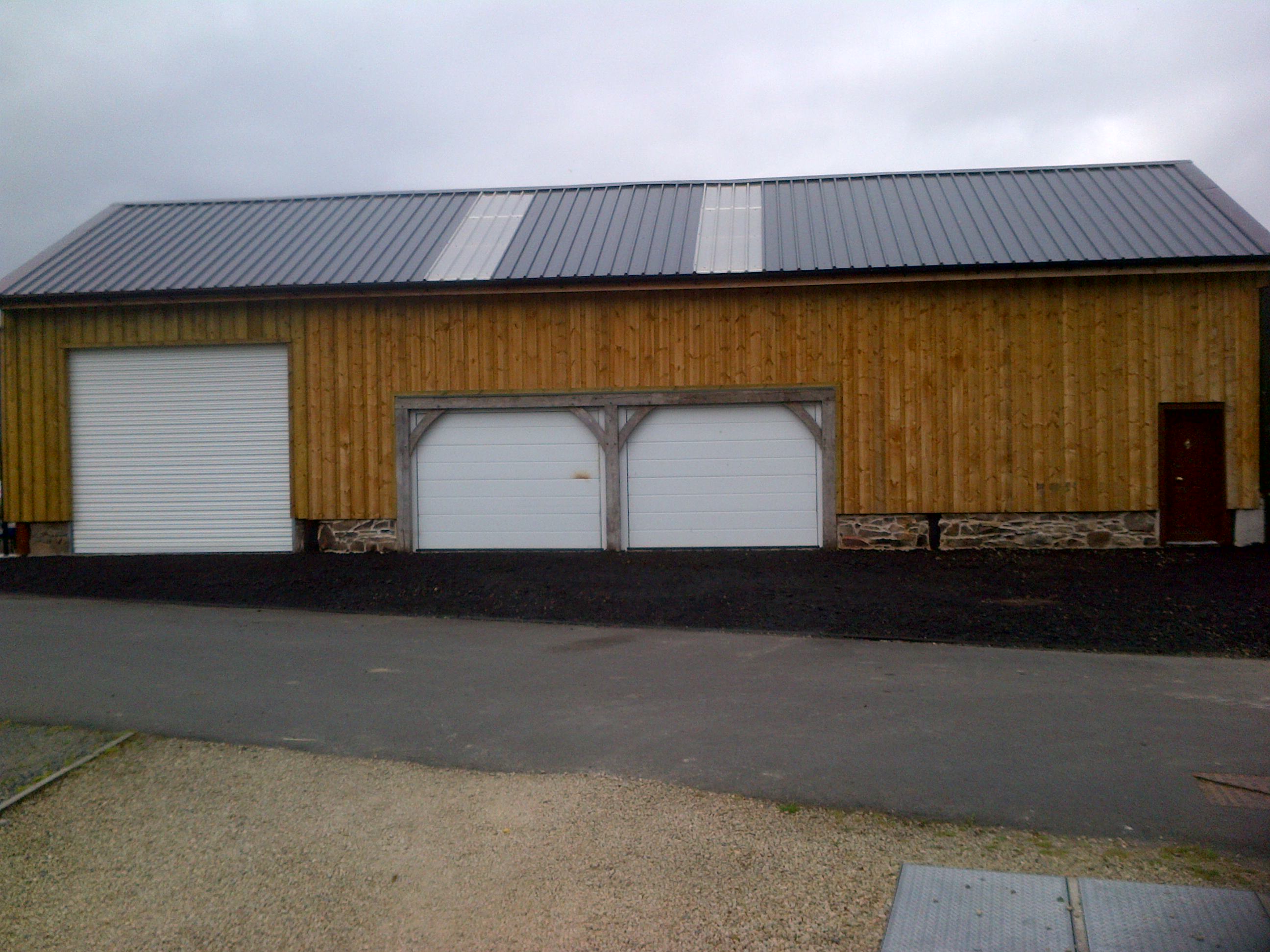

DC200 Insulated Roof Panel application showcase 1

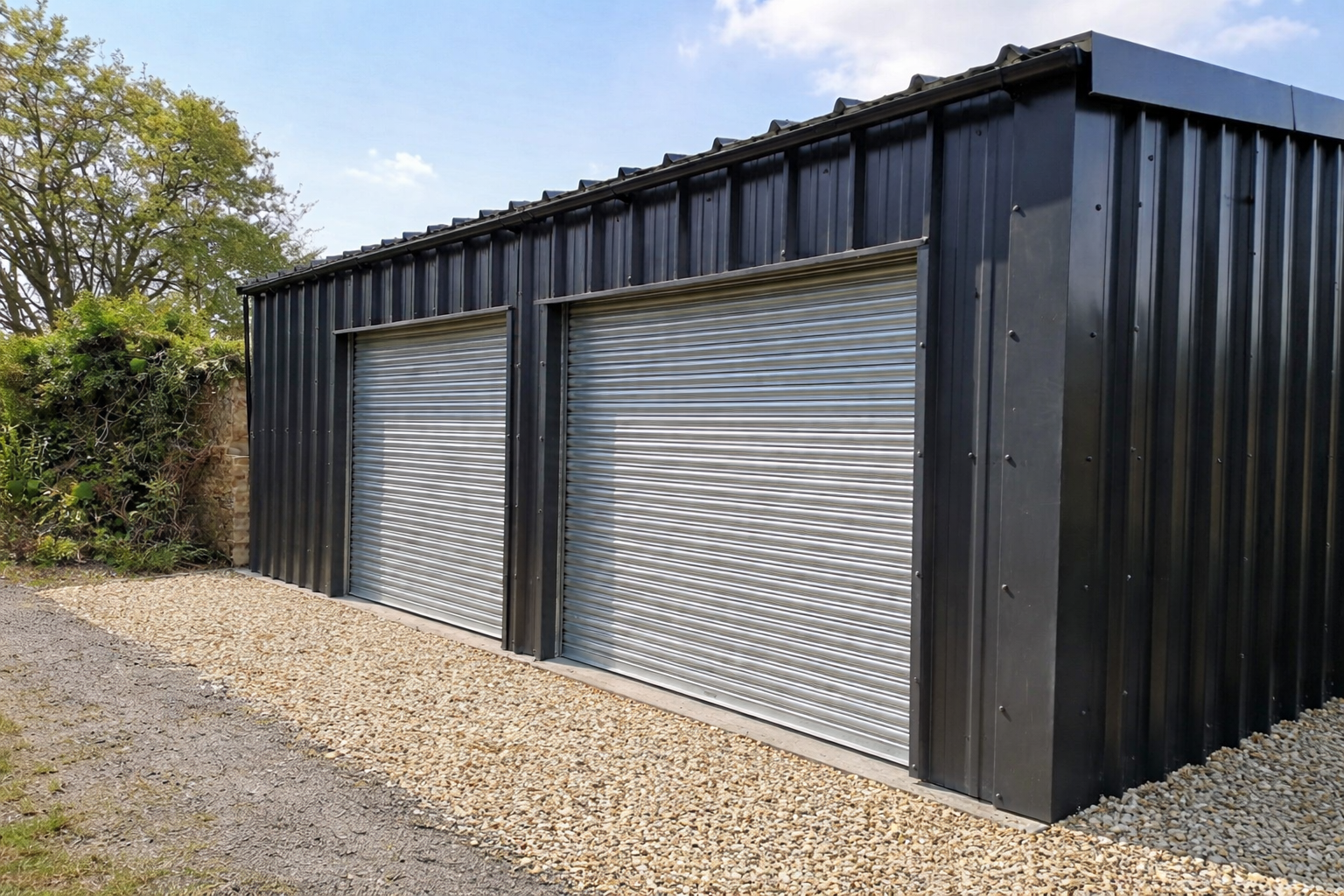

DC200 Insulated Roof Panel application showcase 2

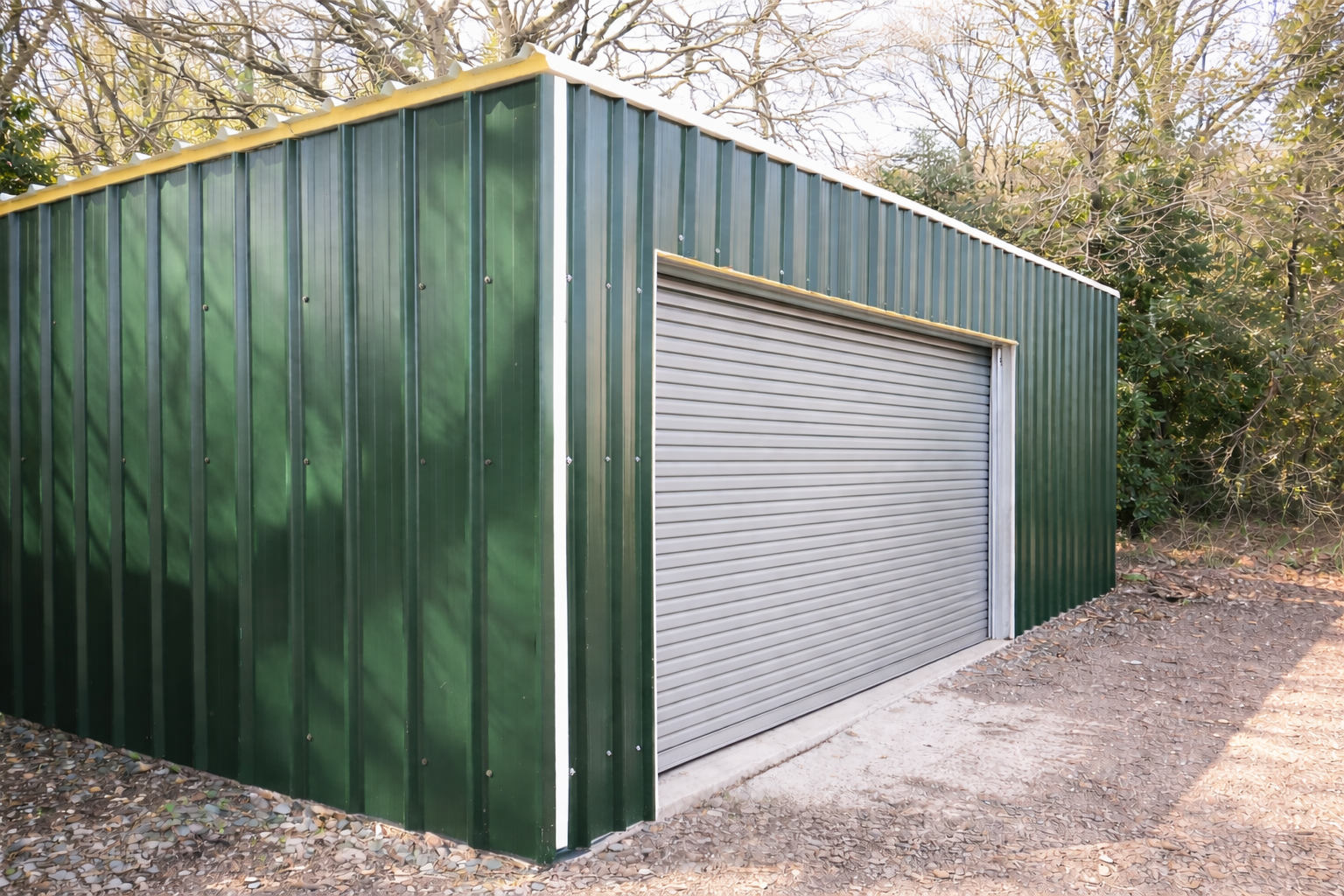

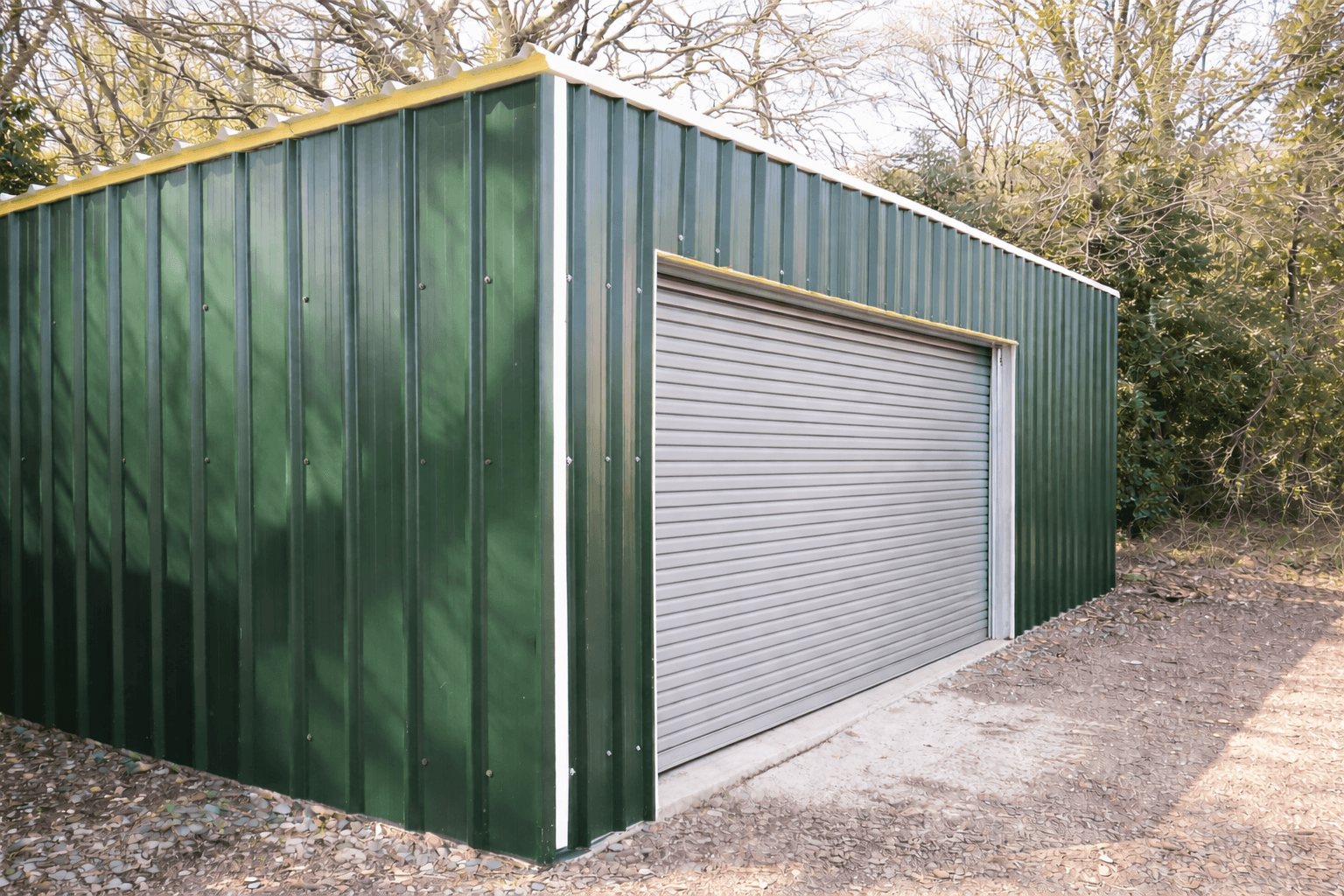

DC200 Insulated Roof Panel application showcase 3
